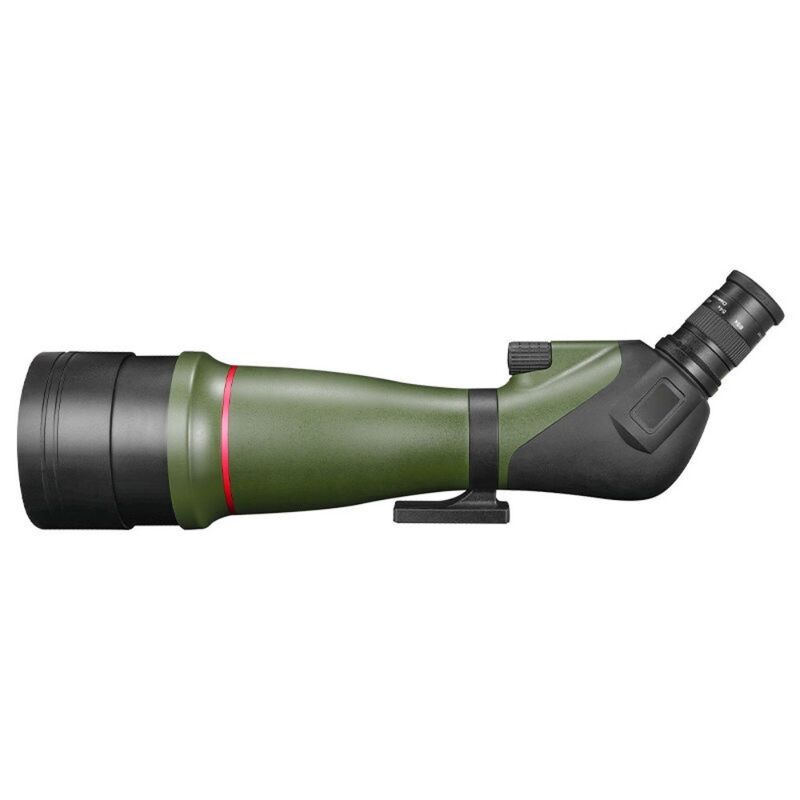

22-65x100ED Spotting Scope Large Aperture Nitrogen Filled Waterproof with BAK4 Prism
  • 22-65x100ED Spotting Scope Large Aperture Nitrogen Filled Waterproof with BAK4 Prism
  • 22-65x100ED Spotting Scope Large Aperture Nitrogen Filled Waterproof with BAK4 Prism
  • 22-65x100ED Spotting Scope Large Aperture Nitrogen Filled Waterproof with BAK4 Prism
  • 22-65x100ED Spotting Scope Large Aperture Nitrogen Filled Waterproof with BAK4 Prism
  • 22-65x100ED Spotting Scope Large Aperture Nitrogen Filled Waterproof with BAK4 Prism
  • 22-65x100ED Spotting Scope Large Aperture Nitrogen Filled Waterproof with BAK4 Prism

22-65x100ED Spotting Scope Large Aperture Nitrogen Filled Waterproof with BAK4 Prism

Place of Origin China
Certification CE, FCC, ROHS
Model Number TFS22100ED 22-65x100
Product Details
Magnification:
22-65X
Objective Lens Diameter:
100mm
Weight:
1,830g
Lens Coating:
FBMC
Field Of View:
1.8°-0.9°
EXIT PUPIL DIST.:
17mm
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable
Packaging Details
Optional
Delivery Time
3-30 days
Payment Terms
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Product Description

22-65x100ED Spotting Scope Large Aperture Nitrogen Filled Waterproof with BAK4 Prism



Product Description

New Design 22-65X100 ED spotting scope
ED vision, high quality 22-65X100 spotting scope with zoom, variable magnification from 22 to 65 times, large diameter of 100mm, waterproof and nitrogen filled housing, ideal for outdoor bird watching.

Features:
•Low Dispersion ED Lens
•Fully multi-coated optics large 100mm lens
•22-65x zoom magnification adjustment
•Tilted eyepiece and external quick-focus button
•IPX67 High Power Waterproof,Nitrogen filled and sealed body for water and fog tightness
•Durable, high-strength aluminum body

◆Low Dispersion ED Lens:
The ED lens can greatly reduce the dispersion of the imaging edge, thereby improving the realism and appreciation of the picture
◆Large 100mm lens diameter:
Superior clarity, provides exceptional low-light performance even at the highest magnifications.
◆BAK4 internal prism system:
Ensures maximum light transmission, it is also gentle on the eyes, greatly reducing fatigue and prolongs observation time.
◆FBMC anti-distortion lens:
For higher contrast and resolution. Multi-coated optics provide a clearer, brighter image at dusk and dawn, when you need to see the most.
◆Large eyepiece lens size:
Large eyepiece, exceeds 23mm even in low light conditions, can also ensure more details in the image, greater brightness.
◆Central focusing system:
With the central focusing system for quick and easy focusing, this spotting scope provides excellent image clarity even in low light conditions. The image is more detailed in all conditions.
◆Durable aluminum frame, 45° angled comfortable viewing:
Its durable aluminum frame with rubber armor is designed to withstand the harshest outdoor environments, so you can take this zoom scope on your expeditions with confidence. The 45° angled eyepiece allows for a comfortable viewing position.
◆IPX67 High Power Nitrogen Filled Waterproof:
Nitrogen filled waterproof and fog-proof design enables the scope to withstand the toughest environments. Durable Framework and Rubber Armor provide non-slip grip, shock-proof grip and durable external lasting protection. The eyepiece shield can be stretched out to protect the eyepiece.
◆2-Knob Dual speed focus and dynamic lens focusing system:
Fast focusing wheel helps you lock the target quickly, fine focusing wheel zooms in on the target and gets more detail.
◆Compatible with a variety of tripods and phone clamps:
Compatible with kinds of phone adapters, car window mounts and stable stretchable / non-stretchable tripods, enables you to take photos and videos of what you have observed easily.
◆Wide range of applications:
Supplied in a carrying case, with a rotating tripod, this high clarity optic is an excellent choice, perfect for use as a birdwatcher, stargazer, long distance observer and target shooter.



22-65x100ED Spotting Scope Large Aperture Nitrogen Filled Waterproof with BAK4 Prism 0

22-65x100ED Spotting Scope Large Aperture Nitrogen Filled Waterproof with BAK4 Prism 1

22-65x100ED Spotting Scope Large Aperture Nitrogen Filled Waterproof with BAK4 Prism 2

22-65x100ED Spotting Scope Large Aperture Nitrogen Filled Waterproof with BAK4 Prism 3

Specification
POWER

22x
65x
OBJ.LENS DIA.
mm
100mm
TYPE OF PRISM
Type / Material
Porro/BAK4
PRISM COATING
Yes / No
No
NUMBER OF LENS
Pieces & Groups
9pieces6groups
LENS COATING
CL/FC/BMC/FBMC
FBMC
FOCUS SYSTEM
Cent. / Ind. / Fix
Cent.
FOCUSING LENS
Eye. / Obj. / Int.
Int.
EXIT PUPIL DIAMETER
mm
4.6
1.54
EXIT PUPIL DIST.
mm
17
FIELD OF VIEW
ANGLE
1.8°
0.9°

Ft / 1,000Yds
94.2 ft
48ft

M / 1,000M
31.4m
16m
MIN.FOCAL LENGTH
M / Ft.
7m/21ft
RELATIVE BRIGHTNESS

21.2
2.4
TWLIGHT INDEX

46.9
80.6
RESOLUTION

≤2.2"
DIOPTER SYSTEM


DIOPTER COMP.
±Optic.Degree

INTERPUPILLARY DIST.
mm

ZOOM SYSTEM
Type & Location
linear
WEATHER PROOF
Yes / No
Yes
WATER PROOF
Depth / Time
1.5m/3min
NITROGEN FILLED
Yes / No
Yes
EYECUPS SYSTEM
Rubber / Pop-up / Twist-up
Twist-up
POUCH
Yes / No-Mat'l.
Yes
STRAP
Yes / No-Mat'l.
No
CLEANING CLOTH
Yes / No
Yes
SILICA GEL
Yes / No
Yes
UNIT DIAMENSION
mm
485x115x165
UNIT WEIGHT
gm / oz.
1,830g
GIFT BOX SIZE
mm
490x125x200
PIECES PER INNER CARTON
Pieces / Size

INNER CARTON SIZE


PIECES PER SHIPPING CARTON
Pieces
6PCS/CTN
SHIPPING CARTON SIZE
Size
50x39x41
