| Place of Origin | China |
| Brand Name | YBoptics |
| Certification | CE FCC ROHS |
| Model Number | 5-25x56 Scope |

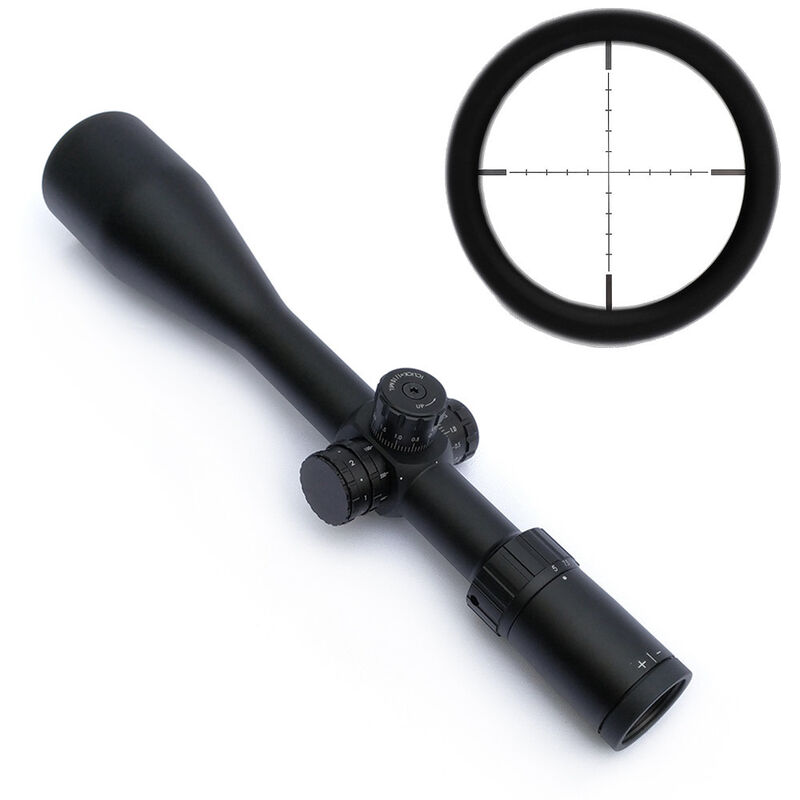

5-25x56 Practice Scopes for Wild Hunting Training
Specifications for YBoptics 6-24x56 Scope
| Magnification Low | 5 |
| Magnification High | 25 |
| Objective diameter | 56 |
| Maintube diameter | 30 |
| Eyepiece Field of view | 18 |
| Diopter range +/- | 2 |
| Exit Pupil Distance (mm) | 101.2 |
| Standard Klick value for E/W (MOA) | 0.125 |
| Turret adjustments knob | yes |
| Total travel elevation (@ 100 yds) | ≥ 50MOA |
| Total travel windage (@ 100 yds) | ≥ 50MOA |
| Parallax Compensation | 25 yds. - ∞ |
| Parallax compensation type | Side focus |
| Fast focus eyepiece | yes |
| Sealing gas used | Nitrogen |
| Clear aperture min magnification (mm) | 50.0 |
| Clear aperture max magnification (mm) | 56 |
| Eff. exit pupil diameter @ min. magnification ± 3 % | 10.00 |
| Eff. exit pupil diameter @ max. magnification ± 3 % | 2.24 |
| Maximum resolution in Arc. Second (min. Magnification) | 4 |
| Maximum resolution in Arc. Second (max. Magnification) | 3 |
| Range of Function temperature (Unit can still be operated) | -25°C/+55°C |
| Storage temperature | -40C to +85C |
| Range of Dioptric compensation +/- dpt | 2 |
| Permissible backlash Dioptric Compensation | <0.25dpt |
| objective field of view @ 100m min magnification (ft @100yds) | 19.5 |
| objective field of view @ 100m max magnification (ft@100yds) | 3.9 |
| Change of impact point after change of magnification (MOA) | 0.75 |
| Centering Reticle, full Field of View | ± 7 % |
| Straightening of the Reticle | ± 2 ° |
High precision scope with 5-25x magnification, a 56mm objective lens.
Functionally designed first focal plane and second focal plane rangefinder reticle, with easy-to-read ranging information that remains constant regardless of magnification, for faster range estimation and holdover correction
Dial controlled reticle illumination in both red and green with multiple brightness intensities, for better reticle visibility at night or in low light in environments
Aircraft grade aluminum construction with a 30mm sealed, nitrogen charged tube for resistance to water and fog
- 6-24x56mm
- Cleaning Cloth
- Lenses cover
- Packaging color box
We offer OEM / ODM service; Customize scopes according to your specific requirements.
